Surface Quality Monitors - SQM300W

Surface Quality Monitors

Model: SQM300W

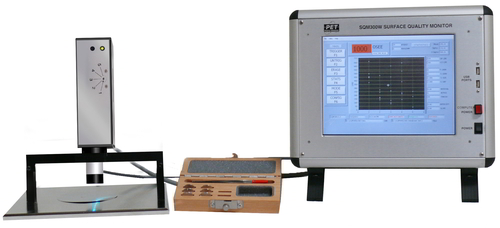

Please click on image for a larger view.

FEATURES:

DETAILED PRODUCT SPECIFICATIONS

Control Unit Model #60226

  • Computer Controlled Digital System
  • USB Ports
  • Flat Panel Color display
  • Analog Output Signal (0 – 10V)
  • Parallel Printer port
  • Hard Disk Data Storage
  • Extensive Software Features:
    • Maximum and Minimum Acceptance Limits; Manual and automatic setting
    • Programmable Gain, 1-2-4-8; Manual and Automatic Setting
    • Ability to store virtually unlimited number of inspection setups and data for future recall
    • Peak Detect feature with automatic Reset
    • Ability to change the measuring units from OSEE to thickness, in Angstroms or Mg/Sq. Ft. Also features user defined units of measurements.
    • Hard Disk data storage
    • Transfer data in spreadsheet format to a floppy diskette
    • Display of Data Statistics with Mean and Standard Deviation, automatically updated as new data is added
    • Graphics display on screen, automatically updated as new data is gathered
    • Ability to take several measurements per sample and display sample variation
    • Ability to print data and Screen Image

Sensor Model #60792

Vertical Sensor (PN#60792) Area Inspected: ~0.95in2
Please click on image for a larger view.

FEATURES:

  • Mercury Vapor UV Lamp
  • Gain Control Switch, 5 settings
  • Inspection Area 0.525” (13.3 mm) Diameter. Can be modified with apertures.
  • Accept/Reject (Go/No Go) LED Indicators

Sensor Stand Model #60791

  • Sensor clamp
  • Manually operated micrometer for Sensor height adjustment, 1” (25 mm) stroke

Aperture Set Model #60561

  • 6 Apertures with different Inspection area openings
  • Tweezers
  • Allen wrench and mounting screws
  • Gain Switch adjusting tool
  • Case

APPLICATIONS SUPPORT

Extensive Applications support is available through the factory including sample testing and reporting. Please contact the factory or your local representative for further assistance.

EQUIPMENT CONFIGURATION & PHYSICAL SPECIFICATIONS

COMPONENT PARTS DESCRIPTION  QTY SIZE WEIGHT
60226Control Unit111″ x 14″ x 14 1/2″27 lbs.
60792Sensor18.75″ x 2.125″ x 4″4 lbs.
60791Sensor Stand19 1/4″ x 9 1/4″ x 4 3/4″6 lbs.
60561Aperture Set11/16″ to 1/4″ Dia. and slotted apertures (total 6)1 lb.


OPTIONS
60780 – 6″ x 1/4″ Rectangular Area Sensor

60778 – 1/2″ Dia. L-Shaped Sensor

60779 – 2″ x 1/4″ Rectangular Area Sensor

Extra Long Sensor Cables
(Standard Sensor Cable length is 6′,
additional length ordered by the foot)
Extended Warranty: Second Year Parts & Labor

Specifications subject to change without notice.
