Solar Simulation Systems
SS80AAA - 300 Watt Solar Simulator

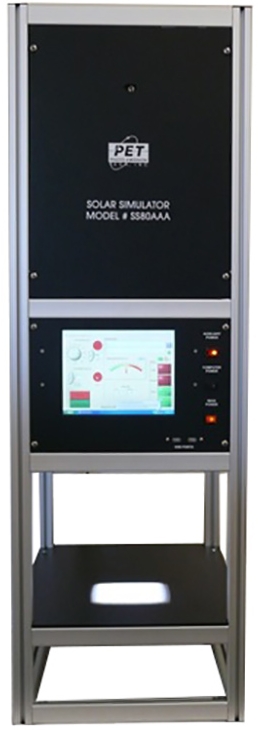

SS80AAA-TP TOUCH PANEL SYSTEM
FEATURES
- Light intensity feedback for stable light output intensity
- Computer based Controller
- Manual / automatic shutter control
- External lamp alignment with lamp on
- Manual/Automatic/External/Remote shutter control
- Forced air cooling
- Lamp life display
- Selectable and adjustable constant intensity or constant lamp current
- Safety Interlock override warning
- Shutter Status Indicator
- Lamp status indicator
- Remote Trouble Shooting via Internet
- One (1) year factory warranty

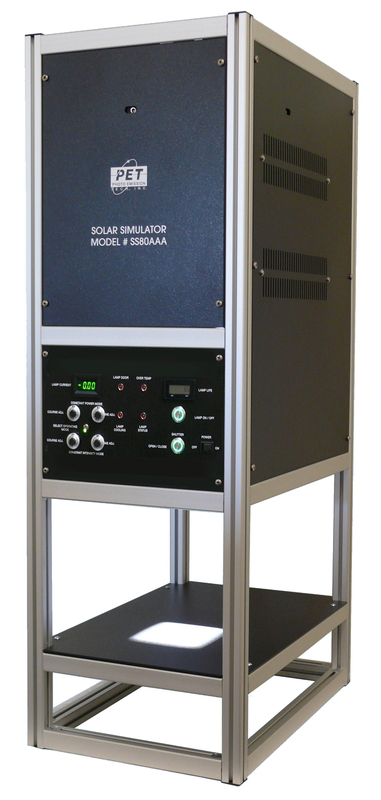

SS80AAA-EM ELECTRO-MECHANICAL SYSTEM
FEATURES
- Light intensity feedback for stable light output intensity
- Electro-Mechanical Controller
- Lamp life display
- External lamp alignment with lamp on
- Manual/Automatic/External/Remote shutter control
- Forced air cooling
- Lamp Life Meter
- Lamp Current Meter
- Selectable and adjustable constant intensity or constant power mode
- Safety Interlock override LED
- Over Temperature Warning LED
- Shutter Status Indicator
- Lamp status indicator
- One (1) year factory warranty
SS80AAA-TP & SS80AAA-EM TECHINCAL SPECIFICATIONS
| Feature Description | Specification |
| Type of Lamp | Xenon Short Arc |
| Lamp Power | 300W |
| Max. Illuminated Area | 3.2" (80mm) x 3.2" (80mm) |
| Light Source | Steady State |
| Air Mass | AM1.5G Standard: AM1.5D or AM1 optional |
| Lamp lifetime | 1500 Hours |
| Adjustment Range of Light Intensity | 100mW/cm2 ±15% |
| Simulator Class* | AAA |
| Spectral Match to all intervals* | ±25% or better |
| Spatial Non-uniformity of irradiance* | ≤ 2% or better |
| Short Term Temporal Instability (STI)* | ≤ 0.5% or better |
| Long Term Temporal Instability (LTI)* | ≤ 2% or better |
| Dimensions (Height x Width x Depth) | 43.2" (1,098mm) x 14.5" (368mm) x 20.8" (529mm) |
| Weight | 65 Lbs. (29.5 Kg) |
| The Optimum Working Distance | 9.4" (239 mm) |
| Phase/Voltage/Frequency | Single Phase/110-220AC Volts/50-60Hz |
| Max. Power Consumption (W) | 0.5 KVA |
