SS100AAA - 500 Watt Solar Simulator

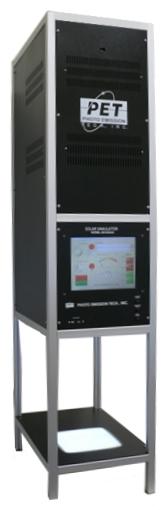

SS100AAA-TP TOUCH PANEL SYSTEM

Please click on image for a larger view.

FEATURES:

  • Light intensity feedback for stable light output intensity
  • Computer based Controller
  • Manual / automatic shutter control
  • External lamp alignment with lamp on
  • Manual/Automatic/External/Remote shutter control
  • Forced air cooling
  • Lamp life display
  • Selectable and adjustable constant intensity or constant lamp current
  • Safety Interlock override warning
  • Shutter Status Indicator
  • Lamp status indicator
  • Remote Trouble Shooting via Internet
  • One (1) year factory warranty

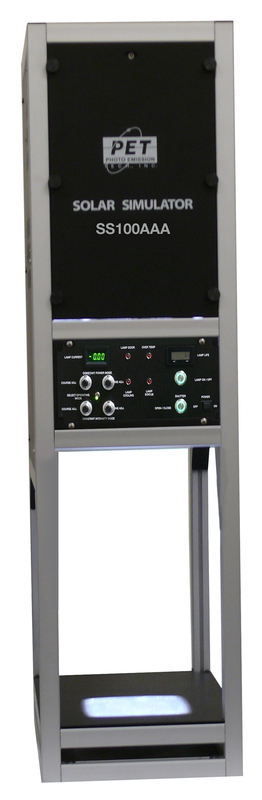

SS100AAA-EM ELECTRO-MECHANICAL SYSTEM

Please click on image for a larger view.

FEATURES:

  • Light intensity feedback for stable light output intensity
  • Electro-Mechanical Controller
  • Lamp life display
  • External lamp alignment with lamp on
  • Manual/Automatic/External/Remote shutter control
  • Forced air cooling
  • Lamp Life Meter
  • Lamp Current Meter
  • Selectable and adjustable constant intensity or constant power mode
  • Safety Interlock override LED
  • Over Temperature Warning LED
  • Shutter Status Indicator
  • Lamp status indicator
  • One (1) year factory warranty

SS100AAA-TP & SS100AAA-EM TECHINCAL SPECIFICATIONS

Feature DescriptionSpecification
Type of LampXenon Short Arc
Lamp Power500W
Max. Illuminated Area3.94″ (100mm) x 3.94″ (100mm)
Light SourceSteady State
Air MassAM1.5G Standard: AM1.5D or AM1 optional
Lamp lifetime1500 Hours
Adjustment Range of Light Intensity100mW/cm2 ±15%
Simulator Class*AAA
Spectral Match to all intervals*±25% or better
Spatial Non-uniformity of irradiance*≤ 2% or better
Short Term Temporal Instability (STI)*≤ 0.5% or better
Long Term Temporal Instability (LTI)*≤ 2% or better
Dimensions (Height x Width x Depth)50.6″ (1,285mm) x 14.5″ (368mm) x 20.8″ (529mm)
Weight65 Lbs. (29.5 Kg)
The Optimum Working Distance9.4″ (239 mm)
Phase/Voltage/FrequencySingle Phase/110-220AC Volts/50-60Hz
Max. Power Consumption (W)1.0 KVA


*Meets Class A Requirements of ASTM E927-2010, IEC60904-9 Edition 2.0 2007-10 and JIS C 8912-1998: amendment 1-2005 & Amendment 2-2011

Specifications are subject to change without notice
