Surface Quality Monitors - SQM200W
Surface Quality Monitors
Model: SQM200W
FEATURES:
DETAILED PRODUCT SPECIFICATIONS
Control Unit Model #60499
- Computer Controlled Digital System
- Flat Panel Color Display
- Automatic Data Saving Capability
- Programmable gain (1-2-4-8) and Upper/Lower acceptance limits, Go / No Go Indicator
- Peak Detect feature with automatic reset
- USB Ports
- Analog Output Signal (0-10V)
- Digital I/O for process control
Sensor Stand Model #60791
- Sensor clamp
- Manually operated micrometer for sensor height adjustment, 1” (25 mm) stroke
- Mercury Vapor UV Lamp
- Gain Control Switch, 5 settings
- Inspection Area 0.525” (13.3 mm) Diameter. Can be modified with apertures.
- Accept/Reject (Go/No Go) LED Indicators
Aperture Set Model #60561
- 6 Apertures with different inspection area openings
- Tweezers
- Gain Switch adjusting tool
- Allen wrench and mounting screws
- Case
DETAILED PRODUCT SPECIFICATIONS
APPLICATIONS SUPPORT
Extensive Applications support is available through the factory including sample testing and reporting. Please contact the factory or your local representative for further assistance.EQUIPMENT CONFIGURATION & PHYSICAL SPECIFICATIONS
COMPONENT PARTS | DESCRIPTION | QTY | SIZE | WEIGHT |
60499 | Control Unit | 1 | 7″ x 14″ x 14 1/2″ | 22 lbs. |
60792 | Sensor | 1 | 8.75″ x 2.125″ x 4″ | 4 lbs. |
60791 | Sensor Stand | 1 | 9 1/4″ x 9 1/4″ x 4 3/4″ | 6 lbs. |
60561 | Aperture Set | 1 | 1/16″ to 1/4″ Dia. and slotted apertures (total 6) | 1 lb. |
OPTIONS | |

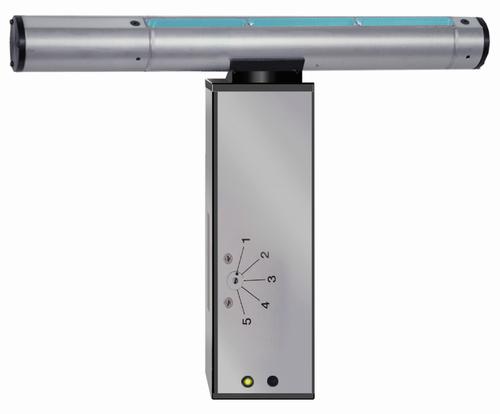

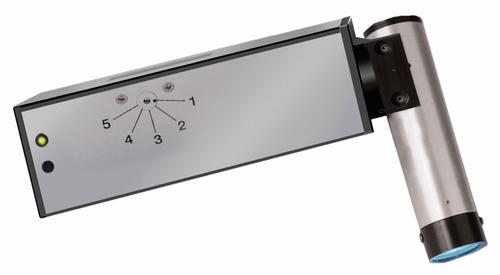

60780 – 6″ x 1/4″ Rectangular Area Sensor | 60778 – 1/2″ Dia. L-Shaped Sensor |

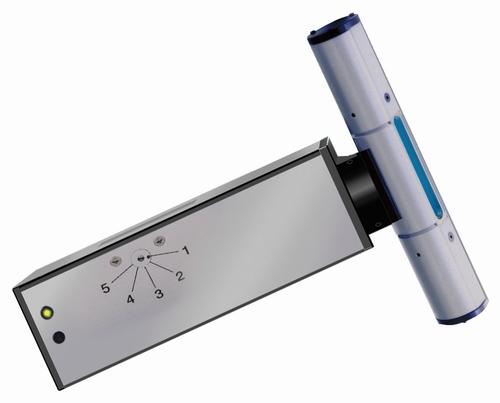

60779 – 2″ x 1/4″ Rectangular Area Sensor | Extra Long Sensor Cables (Standard Sensor Cable length is 6′, additional length ordered by the foot) |
Extended Warranty: Second Year Parts & Labor |
Specifications subject to change without notice.
